Comprehensive PCB Manufacturing Solutions

PCB Manufacturing

_{Our state-of-the-art facilities handle everything from prototyping to high-volume production. We meticulously craft printed circuit boards (PCBs) with precision, ensuring optimal performance for your electronic devices. Our team follows industry standards and best practices to deliver reliable PCBs that meet your specifications.}

_{We pride ourselves on our expertise in producing top-notch PCBs. With our advanced technology and state-of-the-art facilities, we offer a wide range of PCB solutions, from 1 to 16 layers. Whether you require standard FR4 boards or more complex HDI (high density interconnect PCB) and High Frequency Boards, we have the capabilities to meet your specific requirements.}

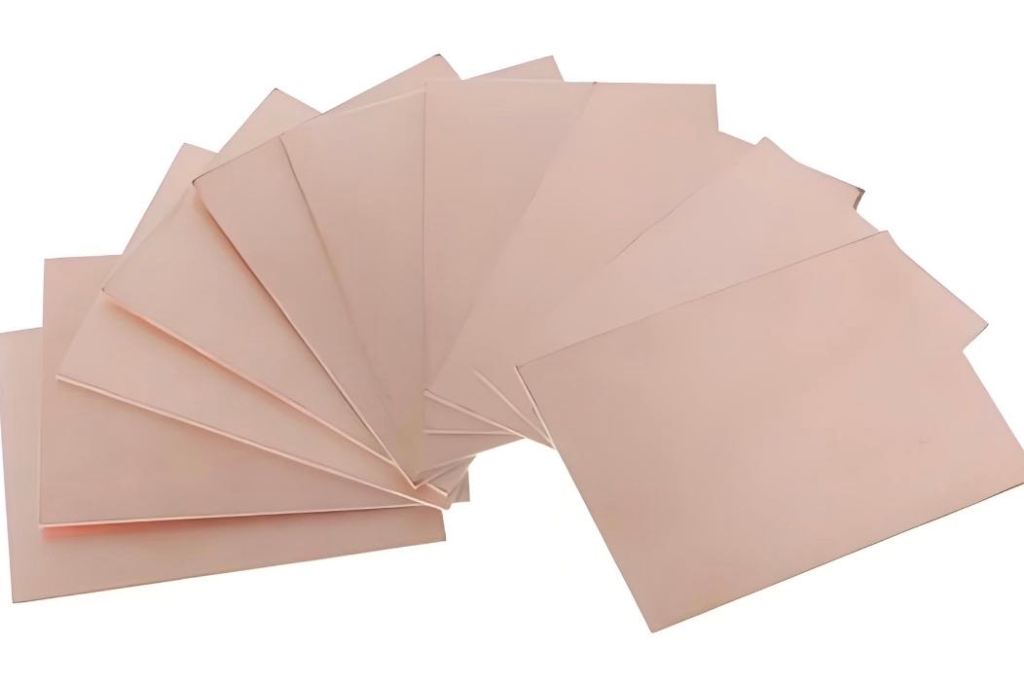

_{Material Cutting}

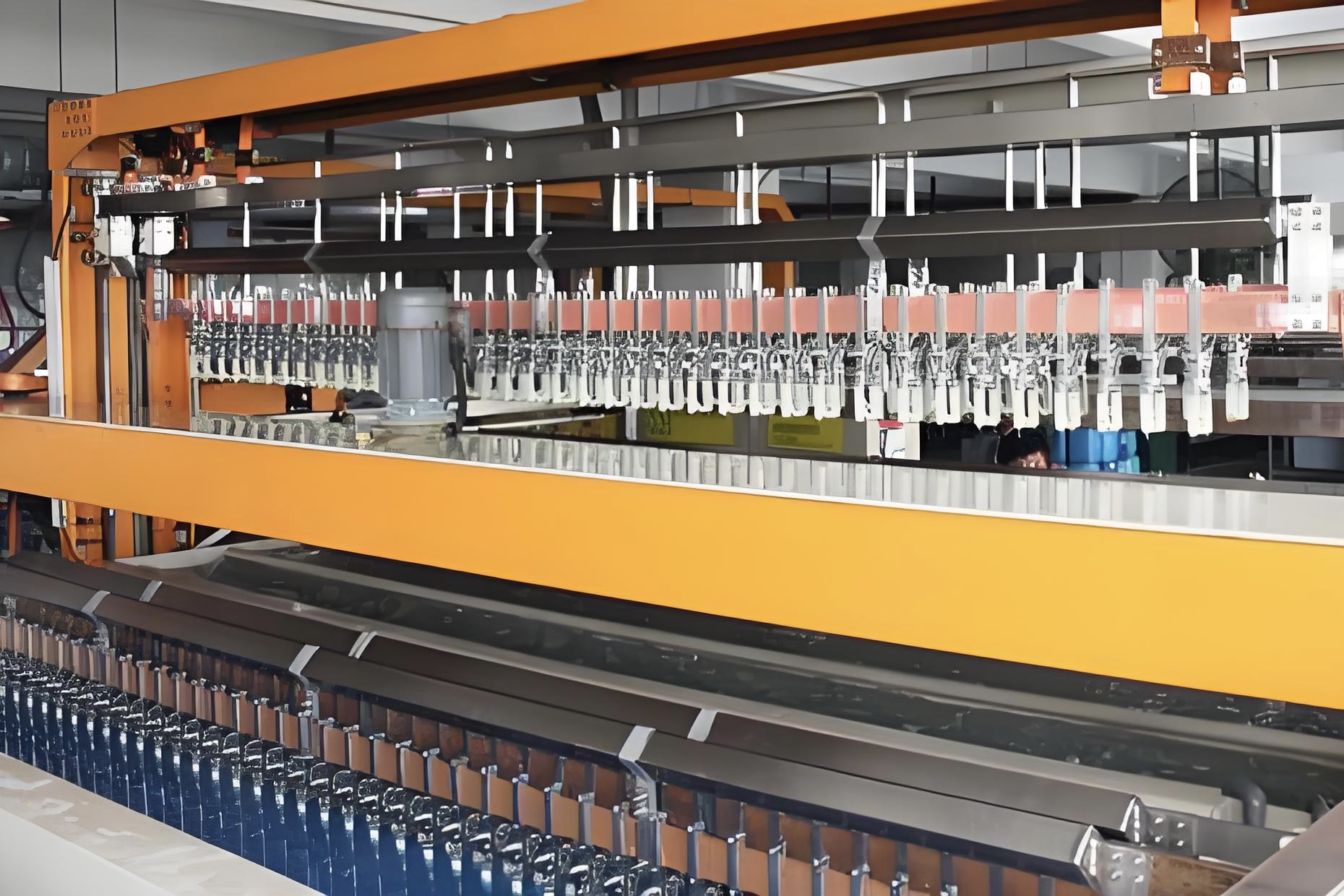

_{Copper Plating}

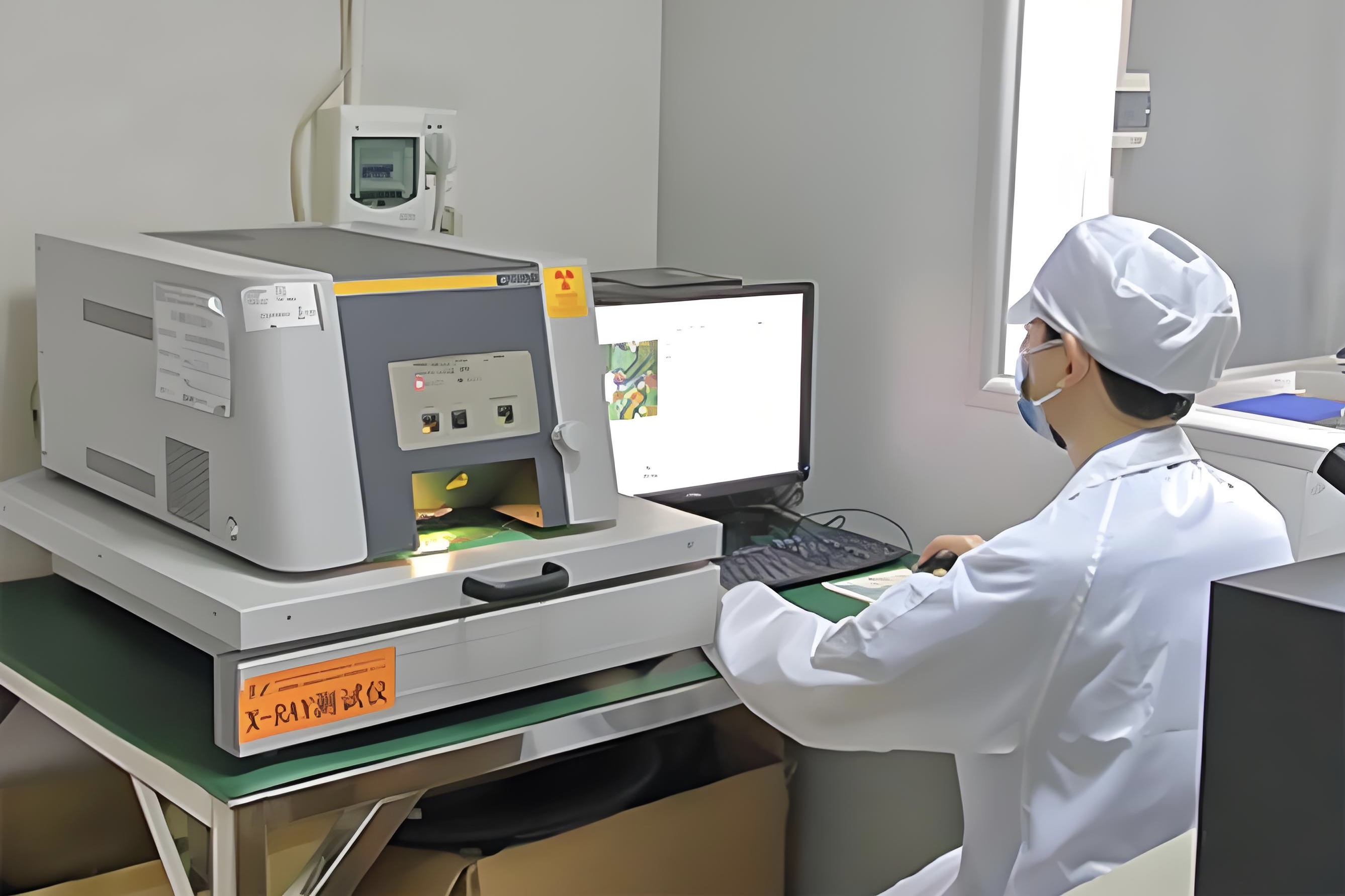

_{Metal Plating Testing}

_Drilling

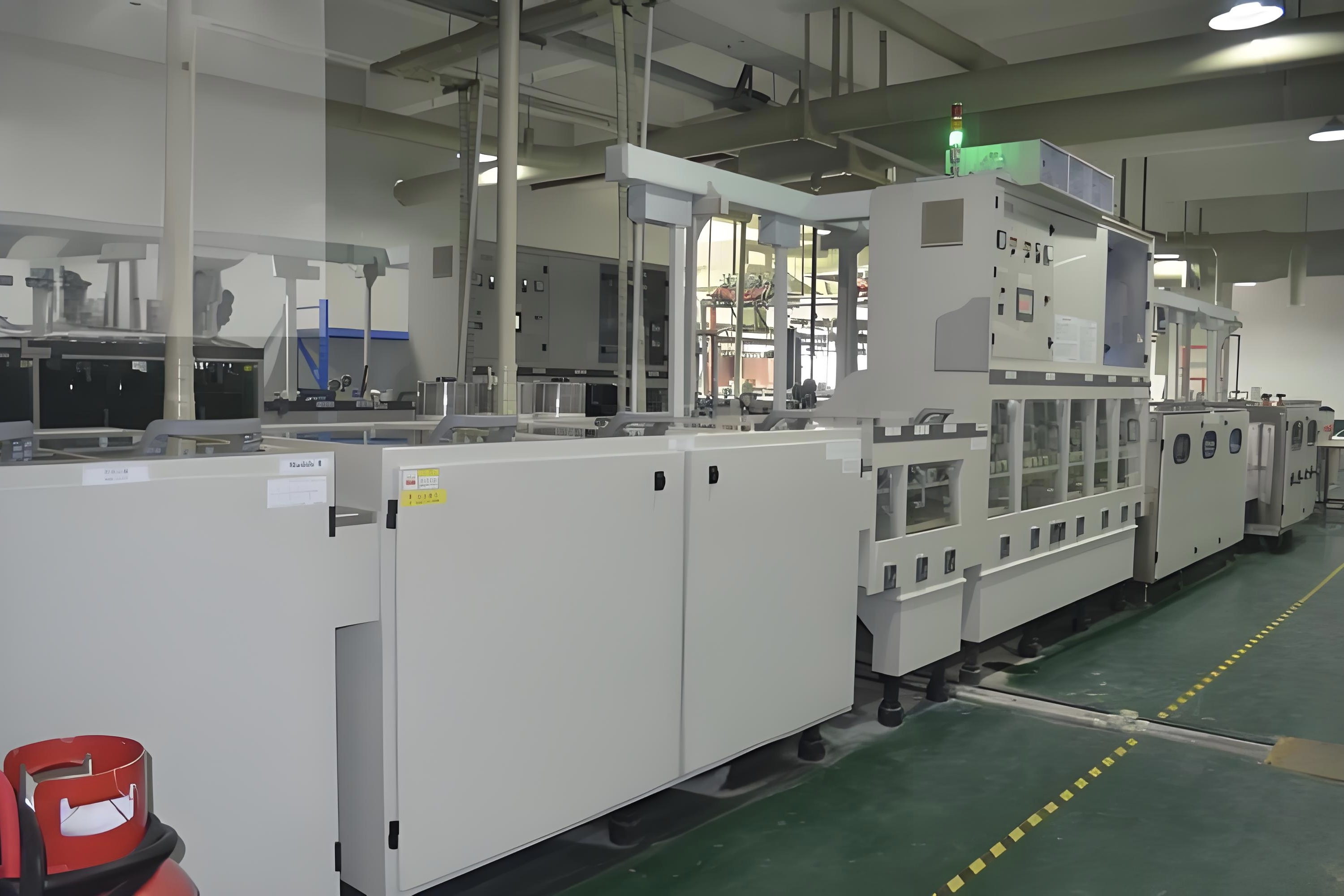

_Etching

_{Legend Printing}

_{Optical Detecting}

_{Dual LDI}

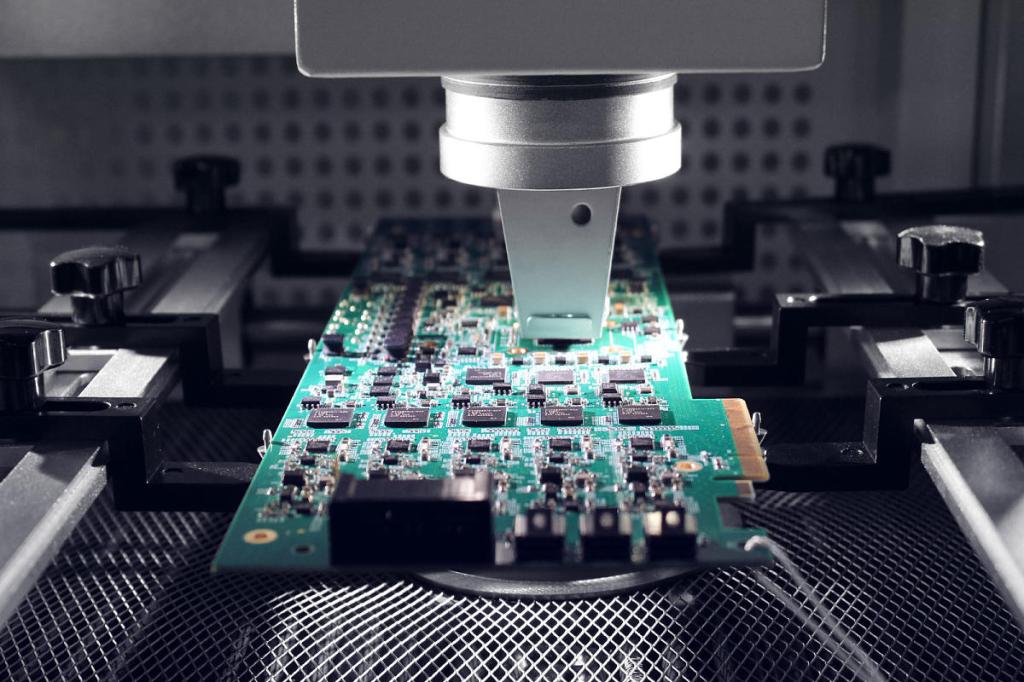

PCB assembly

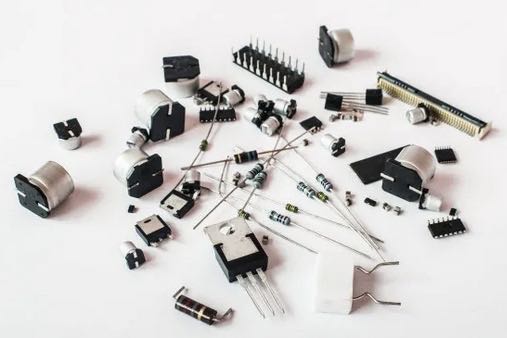

_{We provide you component sourcing and PCB assembly one-stop service to meet the diversified needs. Our professional engineers and technicians will work closely with you through our customer service staff to ensure product quality and prompt delivery times.}

_{Existing 10 SMT production lines, equipped with new imported Fuji XPF, NXT3, automatic solder paste printing machine, ten temperature zone reflow oven, AOI, SPI and other high-end equipment, the SMT production capacity is 31.5 million solder joints / day, especially good at high Precision and high-complexity veneers have actual performance in producing super-complex veneers with 40,000+ solder joints.}

SMT capacity	5 million solder joints/day
SMT production line	Yamaha Turntable 5 lines
throw rate	Resistance-capacitance ratio 0.3%
throw rate	IC class without throwing
Board Type	POP/common board/FPC/rigid-flex board/metal substrate

Mounted Component Specifications	Pastable smallest package	03015 Chip/0.35 Pitch BGA
	Minimum device accuracy	±0.04mm
	IC type chip accuracy	±0.03mm
Mounted PCB Specifications	PCB size	5050mm – 774710mm
Mounted PCB Specifications	PCB thickness	0.1-6.5mm

pcb design

_{Our talented design team transforms ideas into reality. We provide our customers vertically integrated solutions for product development and technological innovation.}
